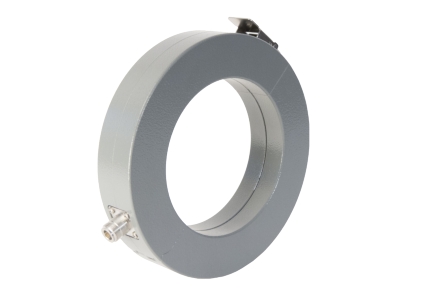

FCC电流监测探头 F-170317-1005

The F-170317-1005-1 is for laboratory and field testing. This probe has a
large inner diameter of 305 mm to accommodate large cable bundles. It
can measure up to 1000 amperes DC – 400 Hz without altering its transfer
impedance.

◆   产品特点

◆   符合标准
The F-170317-1005-1 is for laboratory and field testing. This probe has a
large inner diameter of 305 mm to accommodate large cable bundles. It
can measure up to 1000 amperes DC – 400 Hz without altering its transfer
impedance.
◆   技术参数
Specifications
Frequency: 100 kHz – 300 MHz
Internal diameter: 305 mm
External diameter: 395 mm
Height: 51 mm
Z t Ω 1 : 3.5
dBΩ 1 : 11
Connector: Type-N
DC to 400 Hz: 1000 amperes
RF(CW): 5 amperes
Peak Pulse Current 2 : 100 amperes
◆   实测波形
