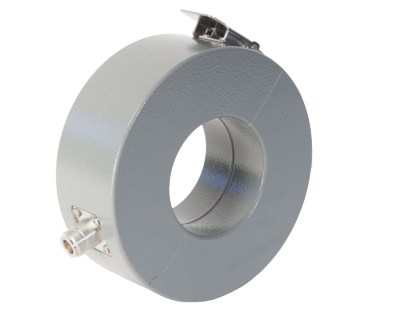

The F-170705-1005-1 has a usable frequency range of 100 kHz – 30 MHz.
Primary power currents of 750 amperes DC – 400 Hz and 100 amperes pulse
will not alter the transfer impedance.
◆ 产品特点
◆ 符合标准
The F-170705-1005-1 has a usable frequency range of 100 kHz – 30 MHz. Primary power currents of 750 amperes DC – 400 Hz and 100 amperes pulse will not alter the transfer impedance.
◆ 技术参数
Specifications Frequency: 100 kHz – 30 MHz Internal diameter: 67 mm External diameter: 142 mm Height: 53 mm ZtΩ 1 : 2 dBΩ 1 : 6 Connector: Type-N DC to 400 MHz: 750 amperes RF(CW): 10 amperes Peak Pulse Current 2 : 100 amperes
